Power in new dimensions Brushless Flat DC-Servomotors with more torque.

More and more applications in the areas of robotics, prosthetics, laboratory automation, medical device technology, pumps, and aircraft cabin equipment require high torque in a very short length.

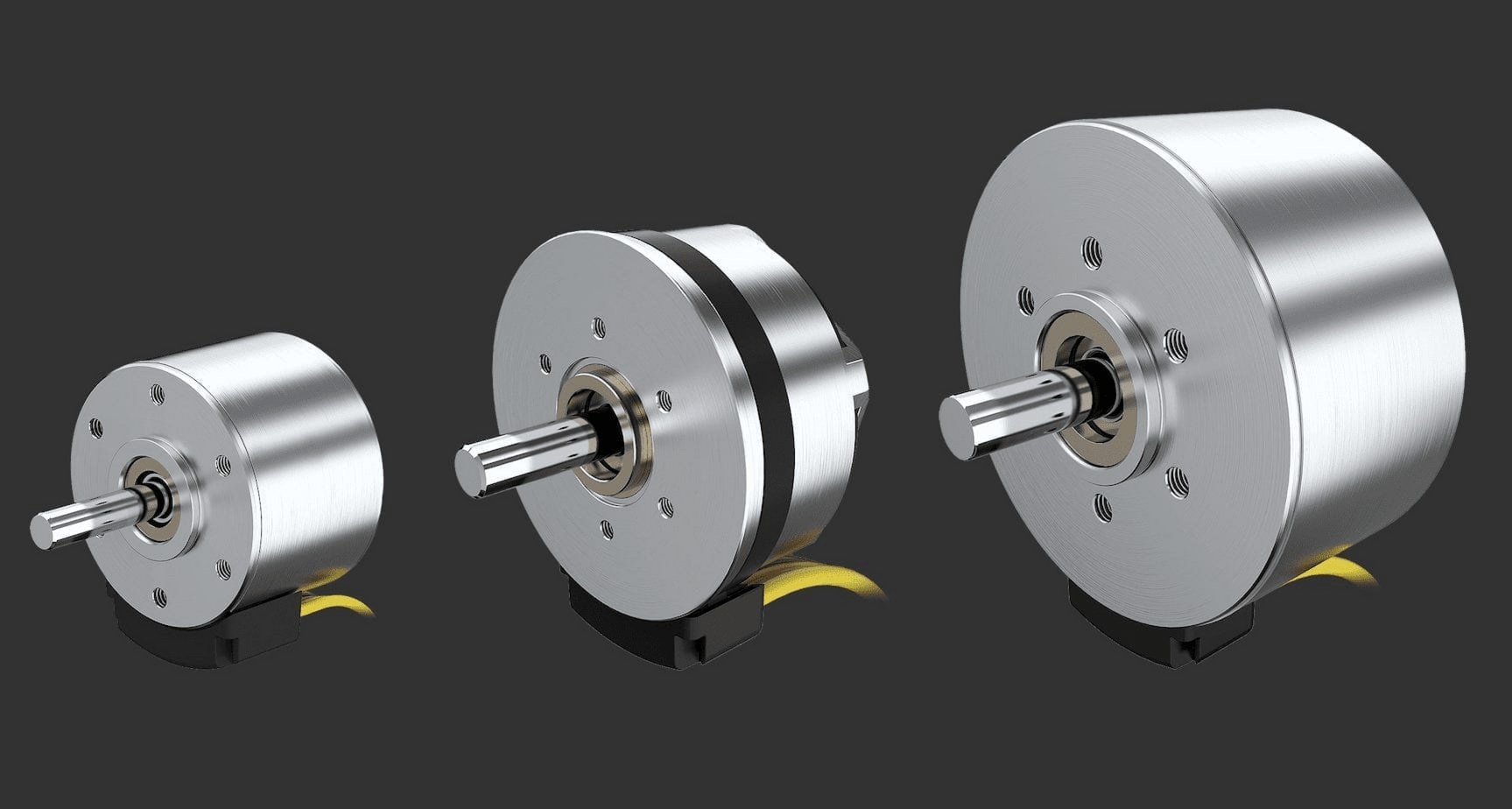

FAULHABER has raised the bar in the area of high performance, external rotor, slotted drives with the introduction of the FAULHABER BXT family of flat brushless DC motors.

Thanks to innovative winding technology and an optimised design, the motors are just 14, 16 and 21mm in length but deliver torques up to 134 mNm, within a diameter of just 22mm, 32mm and 42mm respectively.

They are designed for a continuous output power up to 100 W and thus significantly exceed benchmarks in this class of drives, particularly with respect to the ratio between the torque to length, volume and weight, which benefits applications where available space is at a premium.

As a standard, these new products come equipped with digital Hall sensors. They are designed for speeds of up to 10,000 rpm and can be combined with a wide variety of gears, encoders, brakes and drive electronics from the extensive FAULHABER product range. FAULHABER specialises in modifications to the mechanical and electrical interfaces of the motors to provide solutions configured to each application. The motors feature standard single lead wires and thus offer a flexible electrical interface with multiple industrial connectors.

Available exclusively in the UK from Electro Mechanical Systems Ltd.

Read more here http://www.ems-limited.co.uk/BXT/
